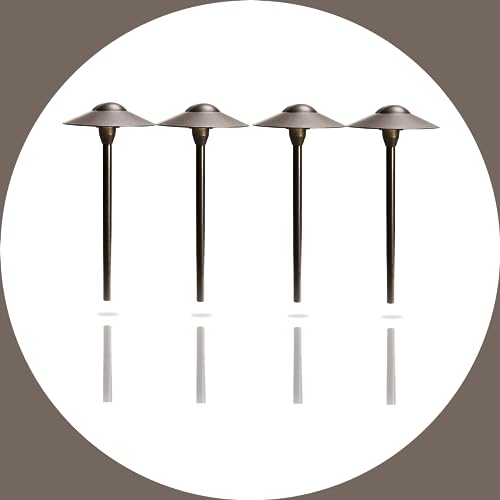

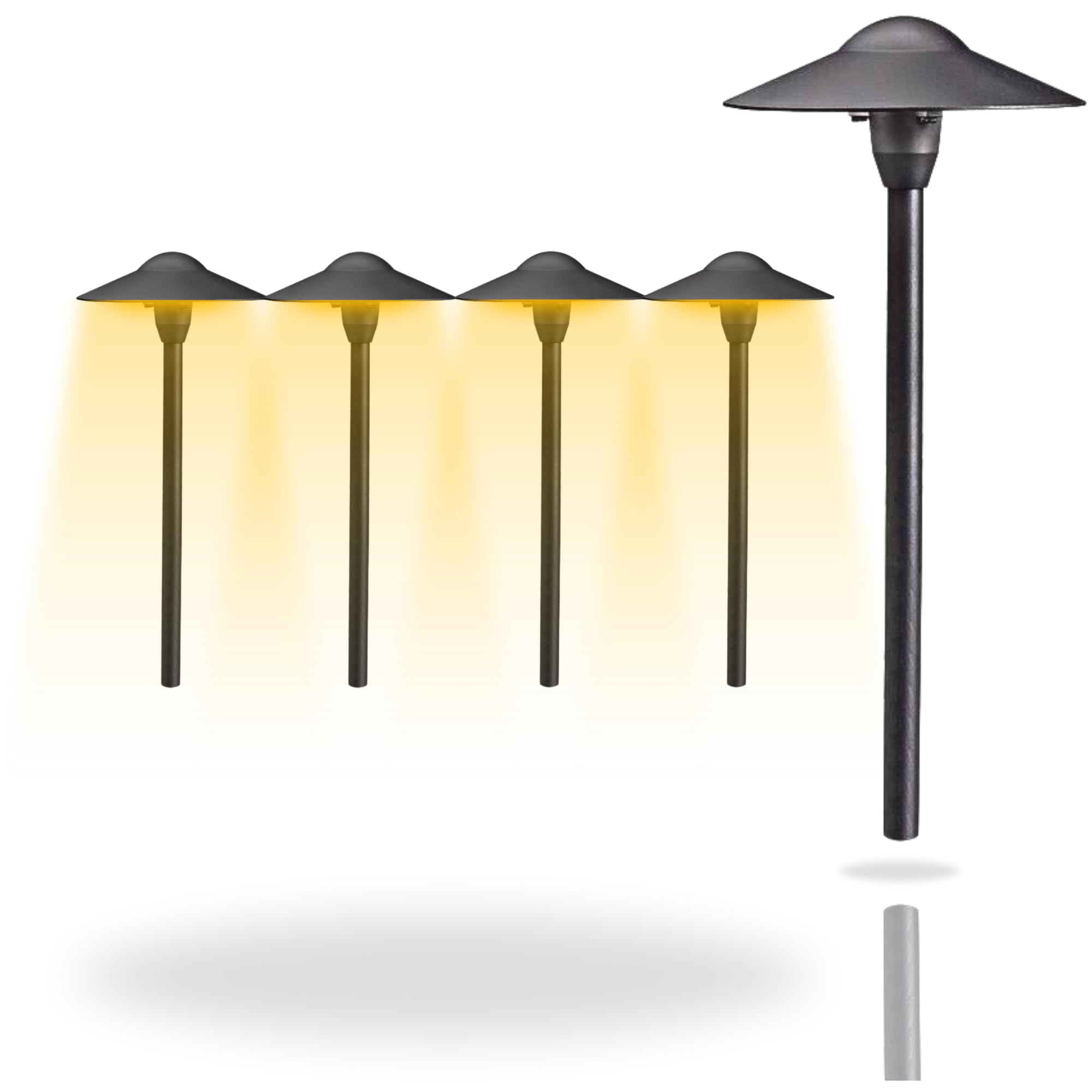

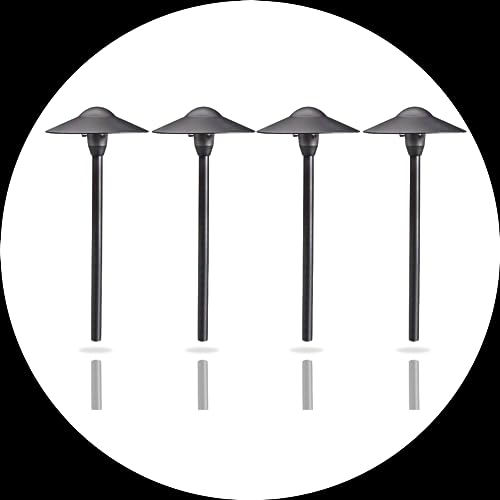

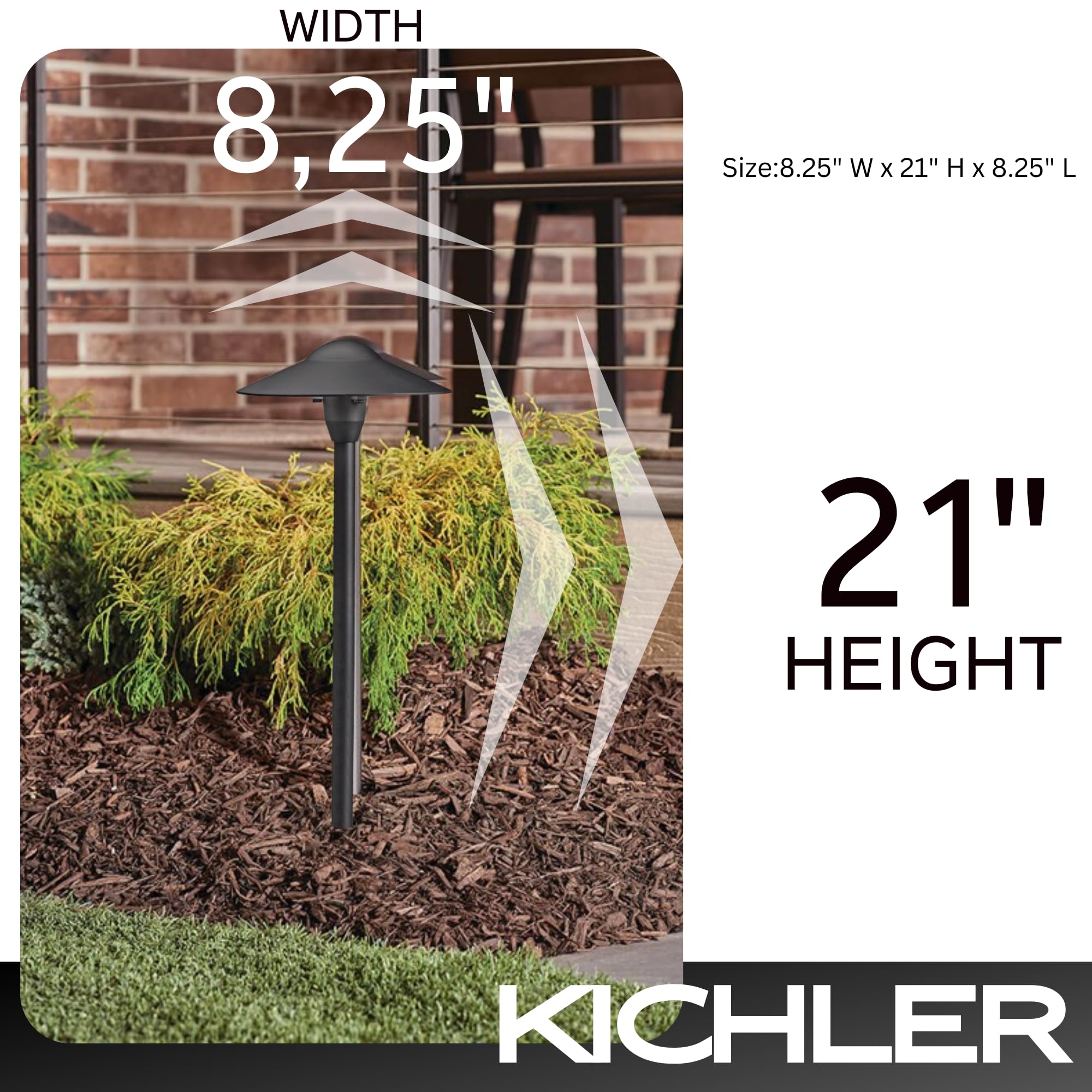

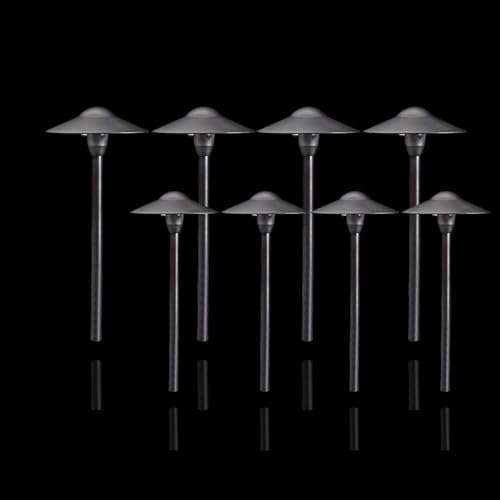

Kicher 12V Landscape Path Lighting Fixture - 4 Pack, 16.25W T5 Wedge Base, Textured Black (8.25"W x 21"H x 8.25"L) - Perfect for Sidewalks, Pathways, Lawns, Gardens, Hotels & Corporate Buildings - Outdoor LED Lighting for Enhanced Safety & Ambiance
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:15 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:86557020
Product Description

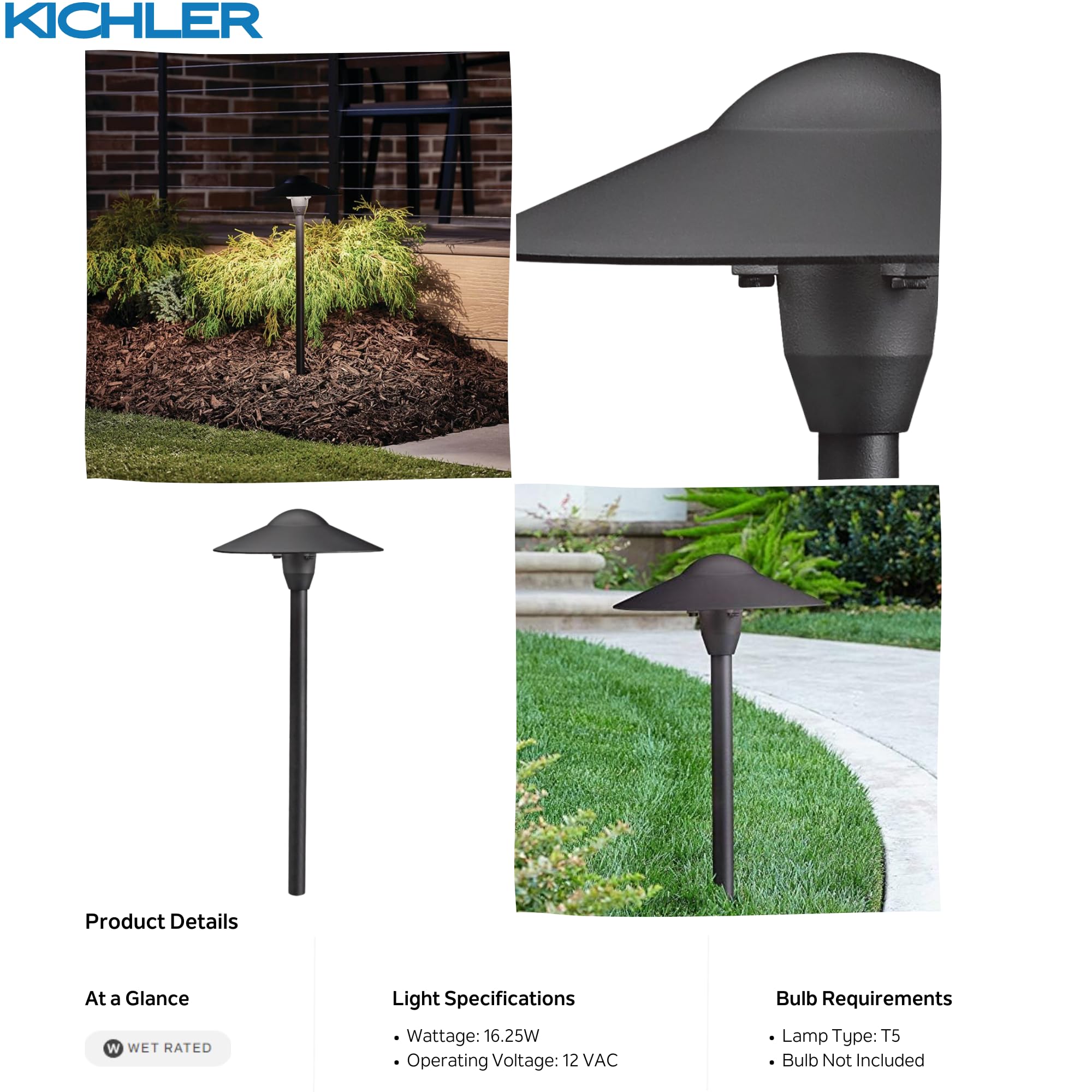

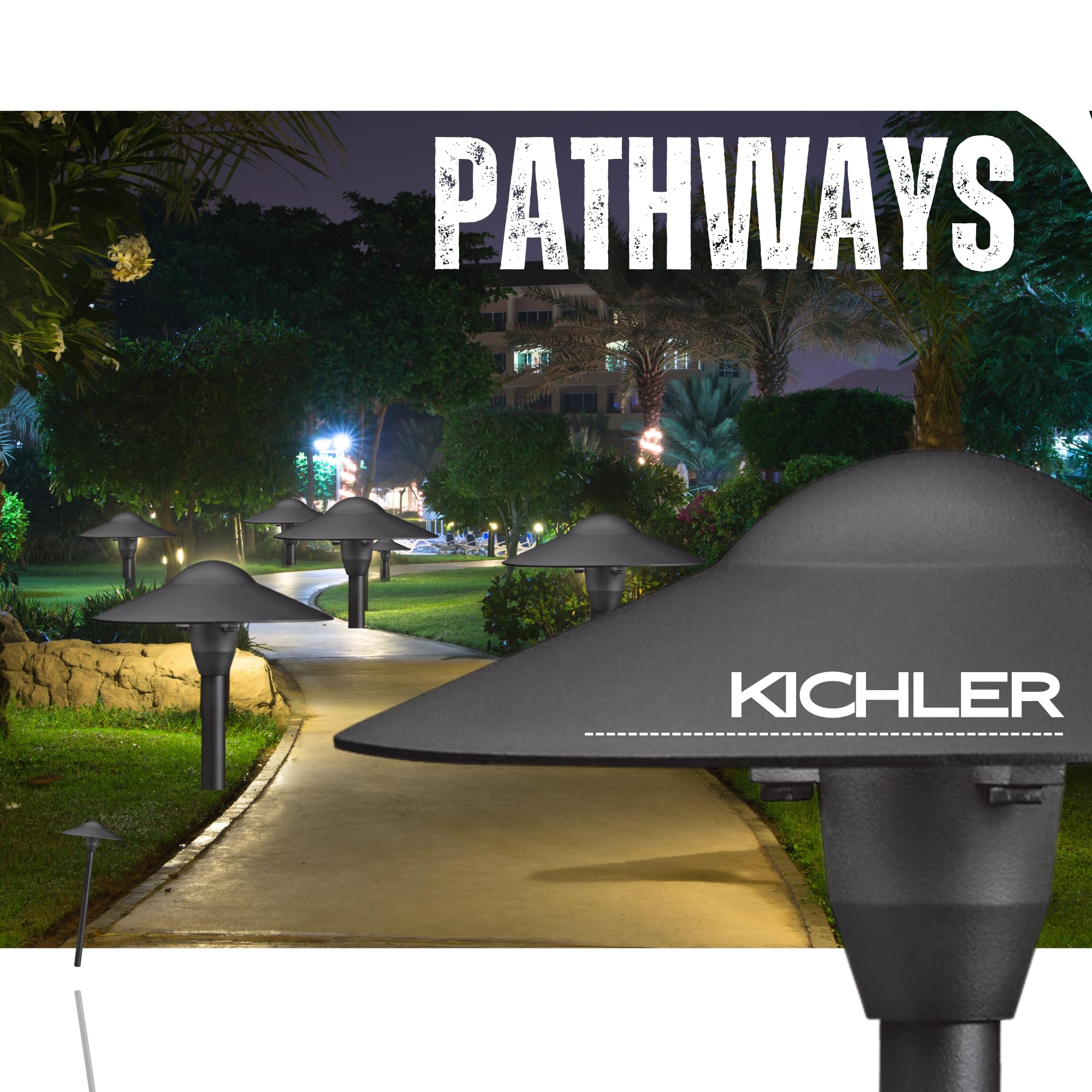

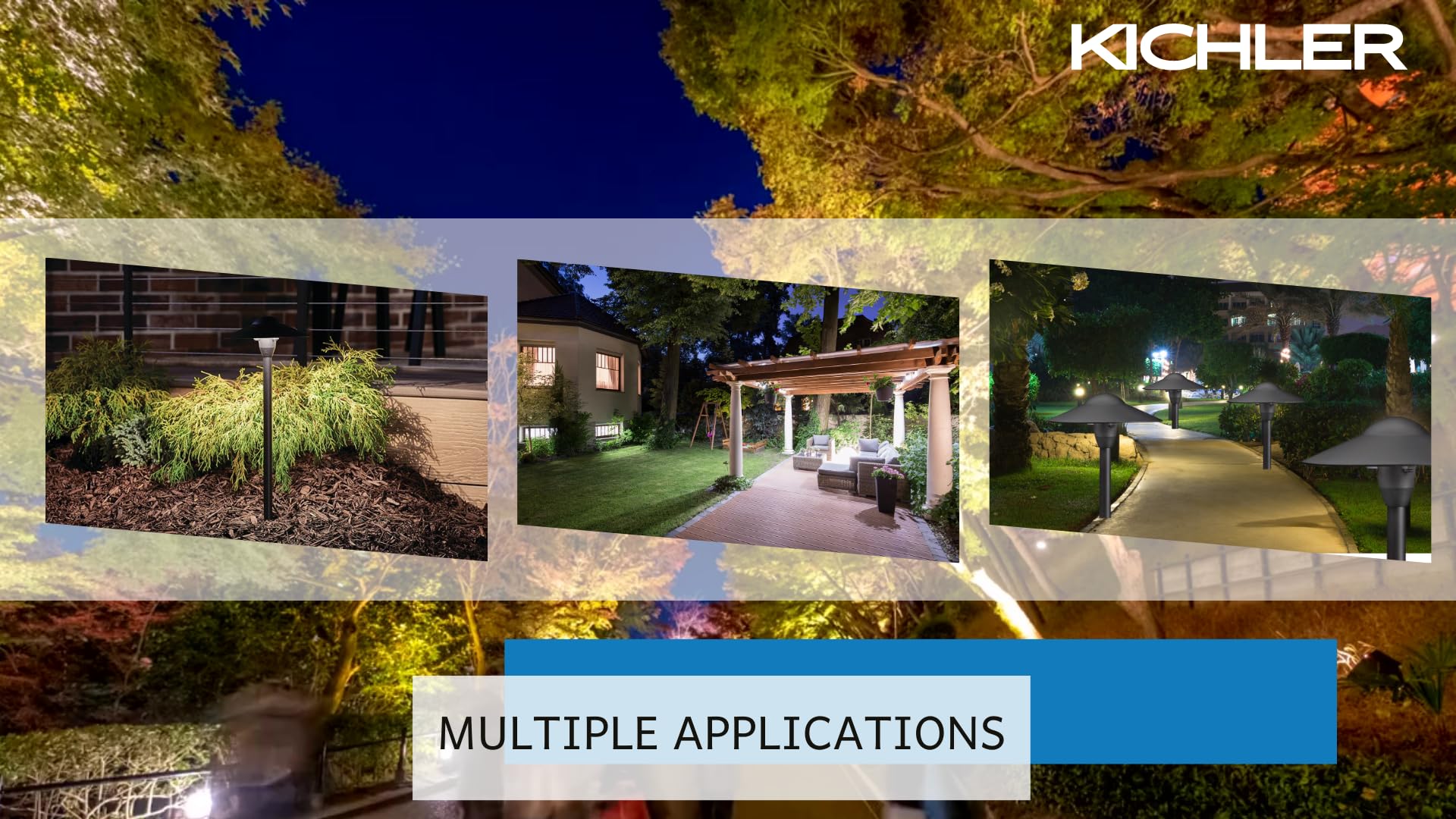

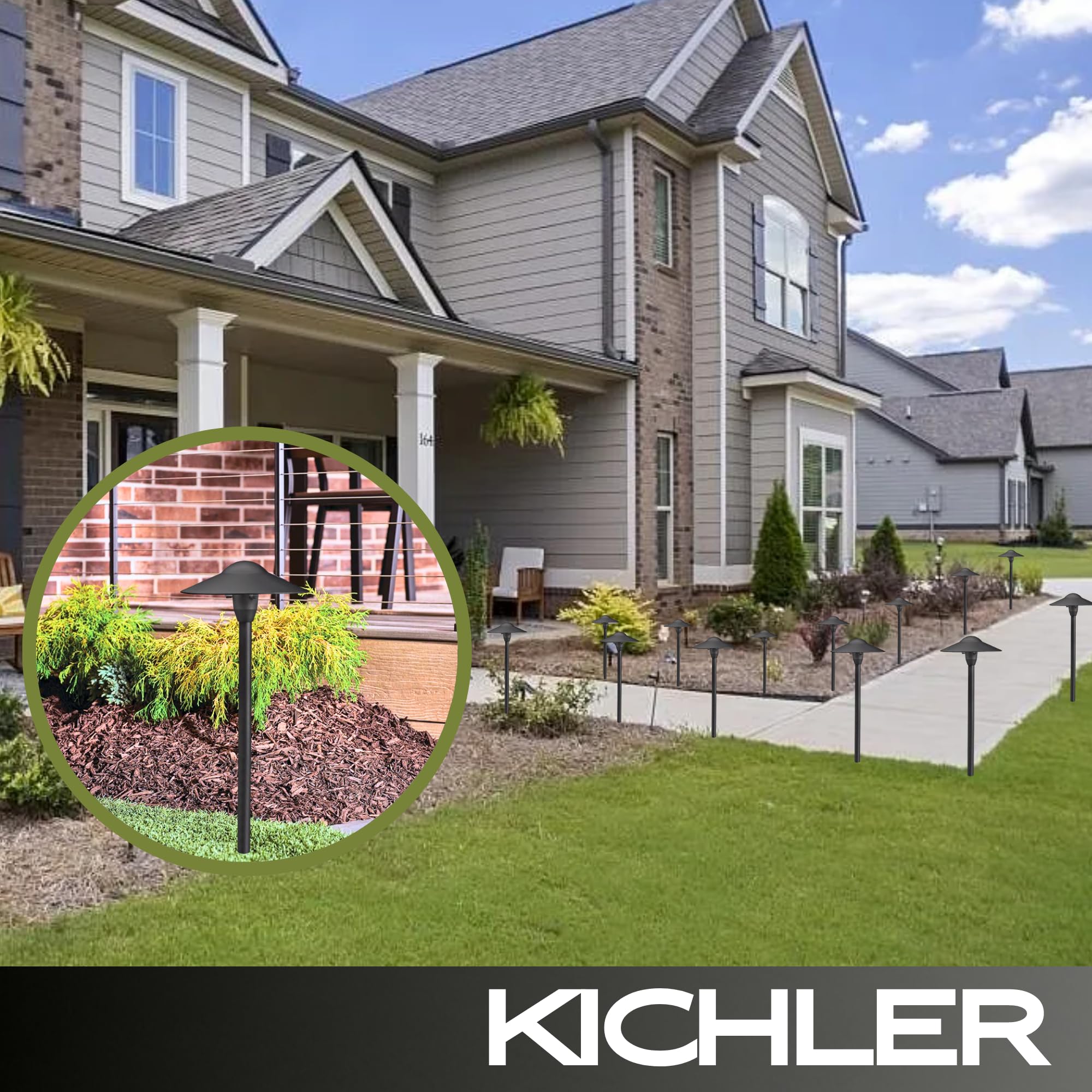

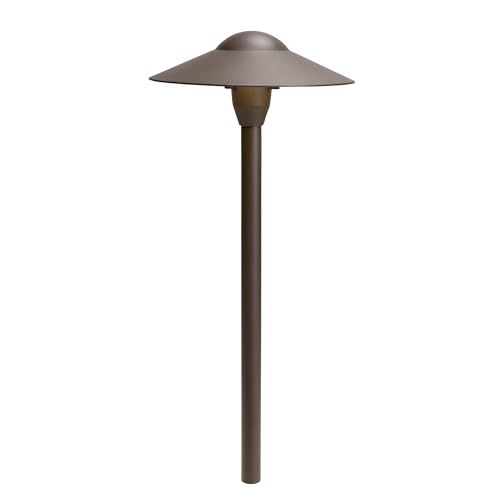

Kicher Landscape Path Lighting Fixture The eight-inch Domed Path Light in Black illuminates sidewalks, stone pathways and lawn areas while adding a pool of light to highlight boulders and low growing annuals or perennial plant beds. Customize color temperature (CCT), wattage, and lumen output based on the LED bulb selection. These drop-in, low voltage fixtures are compatible with a any T5 wedge Professional and Contractor Series LED Lamps and are a great economical choice for any design application. The T5 Wedge socket lamp base is optimized for Kichler LED drop-in lamps, ensuring easy installation and light output selections. The durable, solid, thick-wall aluminum construction withstands harsh weather conditions. Kichler Lighting Landscape products are compatabile with our contractor series LED Lamps, 12/2 wire and a wide range of Kichler Transformers. All 12V low voltage drop-in fixtures require a fixture, LED Lamp, low voltage wire and a transformer to operate as a system.
Product Features
【LUXURY】Add a touch of luxury and ambience to your outdoor living space with these 16.25W path lights. Featuring a modern, streamlined design, these lights provide a warm, inviting glow that will have your patio feeling luxe and exclusive. Perfect for condo living, these energy-efficient lights are the perfect way to add a chic and sophisticated touch to your outdoor area.
【INSTRUCTIONS CONTINUED】1) WARNING This fixture is not to be installed within 10 feet (3M) of a pool, spa, or fountain. 2) This fixture is to be used only with a power unit (transformer) rated a maximum of 300 W (25 AMPS) 15 volts. 3) The #18 ga. fixture wire is not intended for direct burial. 4) Direct burial-rated wire is to be buried a minimum of 6" (152mm) beneath the surface of the ground. NOTE If additional Direct Burial wire is needed, contact your local Kichler landscape distributor
【INSTRUCTIONS CONTINUED】8 GA wire can be purchased in length of 250’ (76 M),15503-BK, 10 GA wire can be purchased in length of 250’ (76 M), 15504-BK. 12 GA wire can be purchased in lengths of 100’ (30 M), 15501-BK; 250’ (76 M), 15502-BK; 500’ (152M), 15473AZT; 15506-BK. 5) Do not use tung-sten halogen lamps 6) Wiring must be made with approved/listed wire connection device(s) suitable for the application. Do not exceed manufacturers’ wiring specifications for the size and quantity of conductors.
【ASSEMBLY AND INSTALLATION】1) Determine the desired location for mounting the fixture. 2) At desired location, hammer stake (A) into ground. To avoiddamage to stake, place a board on top of stake while hammering. If ground is hard and stake is difficult to install, make a crosscut in ground using a flat shovel. 3) Clear away area in ground at wireway hole (B) in top of stake (A). 4) Pass cable through fixture head (F) through stem (C). 5) Screw fixture head (F) onto stem (C).
【ASSEMBLY AND INSTALLATION CONTINUES】 6) Pass 12V cable from stem (C) through wireway hole (B) in stake. 7) Screw stem (C) into stake (A). If assembly does not look straight, adjust by pushing or pulling on stake only. 8) Install provided lamp. 9) Make wire connections using supplied wire nuts following instructions on bag.
Customer Reviews
Our landscape designers recommended a different product line for our modern landscape design project, but I have had great success with the Kichler brand on other house projects and knew that they not only look great and hold up well, but they are easy for electricians to install. So I went with Kichler.When I received several of these dome lights from Kichler, I was surprised at how tall they were, which was not the fault of the listing. They just looked giant. However, once installed, they looked just perfect and blended in to the landscape. We used the bulbs that came with the light and they cast just the perfect amount of light to light the path and area without needing a dimmer.We combined them with the Kichler mini-accent lights to highlight our trees and transformer, see links to these items below. The look is flawless.Kichler 15PL300AZT Plus Series 300-Watt Transformer, Textured Architectural Bronze FinishKichler Lighting 15384AZT 12-Volt Low Voltage Mini-Accent Light with Heat Resistant Flat Glass Lens, Textured Architectural Bronze
